Camlock Fittings with machined hose tail type C and E
-
Description
Sunze camlock fittings with machined tail are made of stainless steel and are manufactured with a specific heat number, which allows all raw material can be traced back.

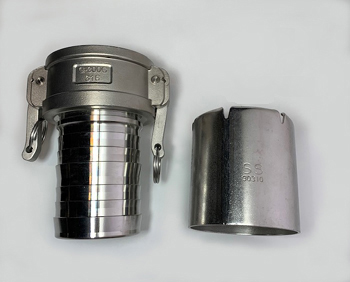

Each camlock fittings is marked with a specific and unique reference number, which is etched onto the body of the fitting. 3.1 Certification is availableMoreover, Sunze camlock fittings with machined hose tail can be crimped with our F60 series ferrules.
All Product are made in Taiwan.
- Available Size Sizes are from 1-1/2” to 6”
More info regarding Sunze camlock fittings crimp style with machined hose tail is as below:
Material: 316 Investment Cast Stainless Steel
Working Pressure: 250 PSI
Safety clips and a Buna-N gasket are included.
All product are made in Taiwan.

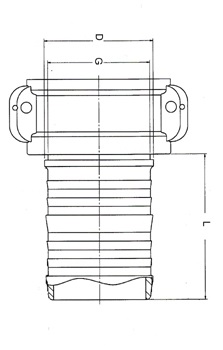

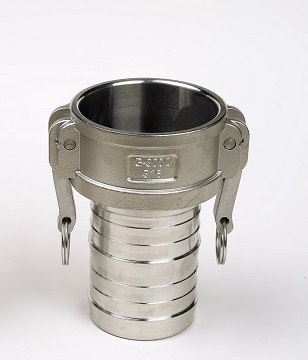

TYPE: C GASKET: NBR (STD)
| ord Nr. | D/mm | G/mm | L/mm | |
| FIS5C150 | 40.5 | 36.9 | 73.2 | |
| FIS5C200 | 53.5 | 49.6 | 85.2 | |
| FIS5C300 | 80.0 | 75.0 | 106.0 | |
| FIS5C400 | 105.3 | 100.4 | 108.0 | |
| FIS5C600 | 161.0 | 151.3 | 155.0 | |

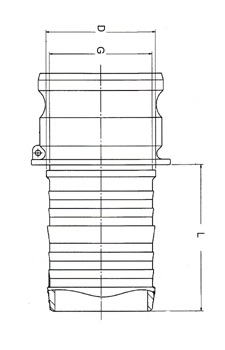

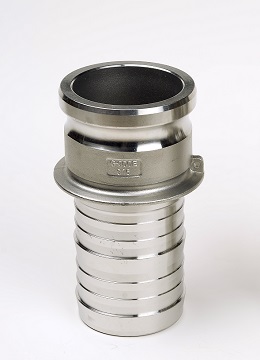

TYPE: E
| Cord Nr. | D/mm | G/mm | L/mm | |
| FIS5E150 | 40.5 | 36.9 | 73.2 | |
| FIS5E200 | 53.5 | 49.6 | 85.2 | |
| FIS5E300 | 80.0 | 75.0 | 106.0 | |
| FIS5E400 | 105.3 | 100.4 | 108.0 | |
| FIS5E600 | 161.0 | 151.3 | 155.0 | |
Optional Gaskets:

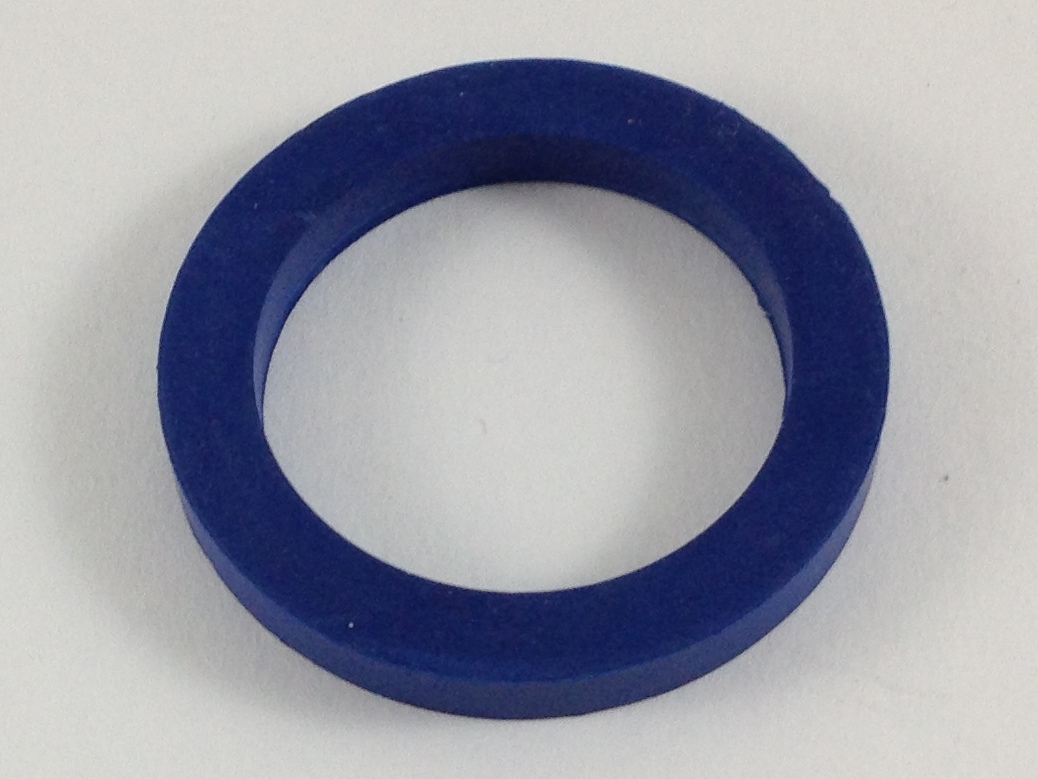

EPDM BLUE
VITION GRAY

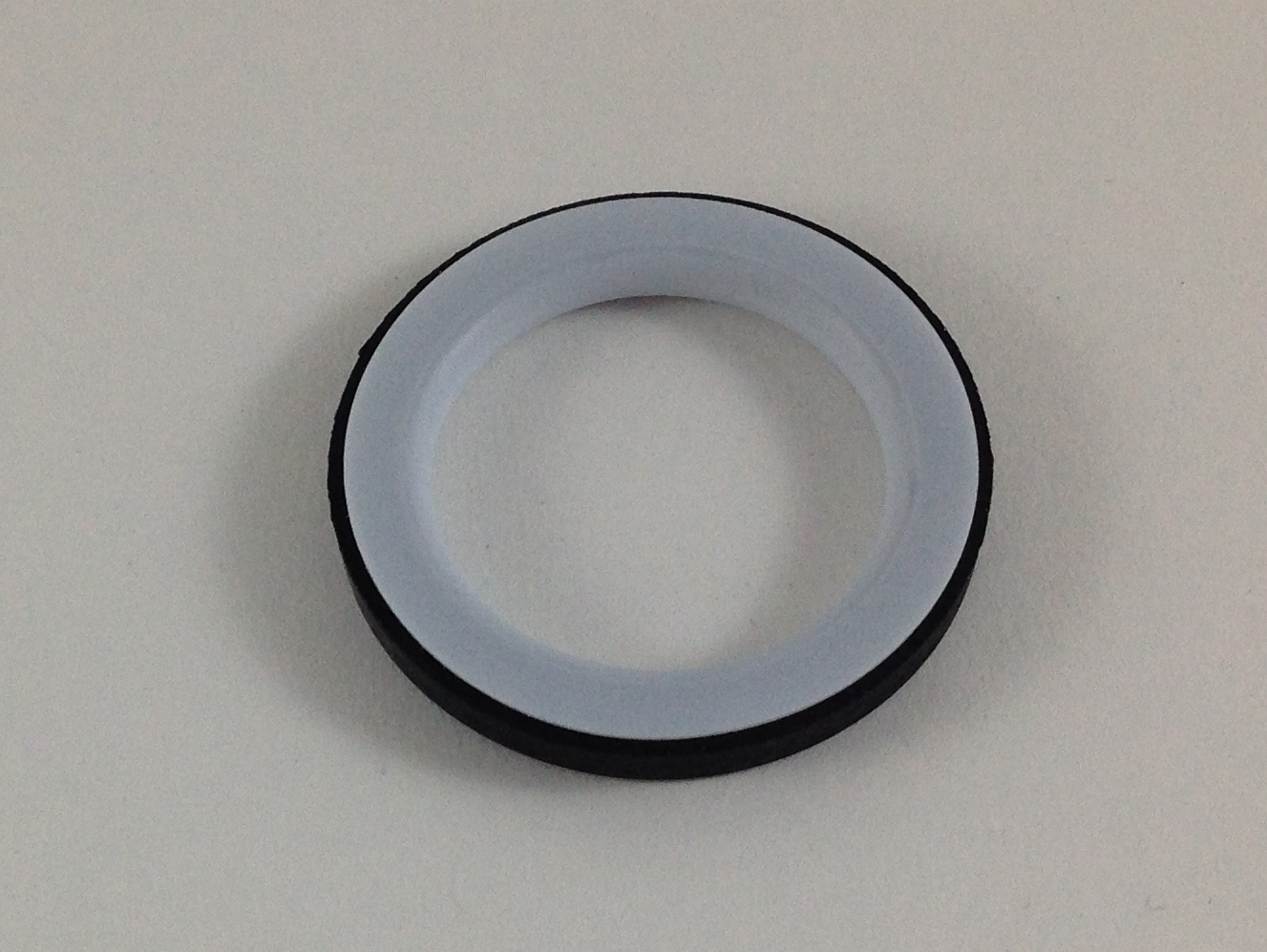

NBR+TEF

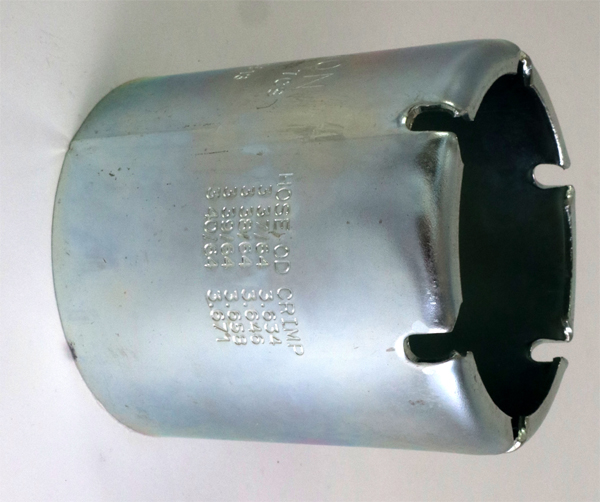

Swage ferrule: Interlocking Slotted Ferrules.
Camgroove Crimping SS316 std (SS304available on request MOQ 100pcs/each), F60 Ferrules SS304
